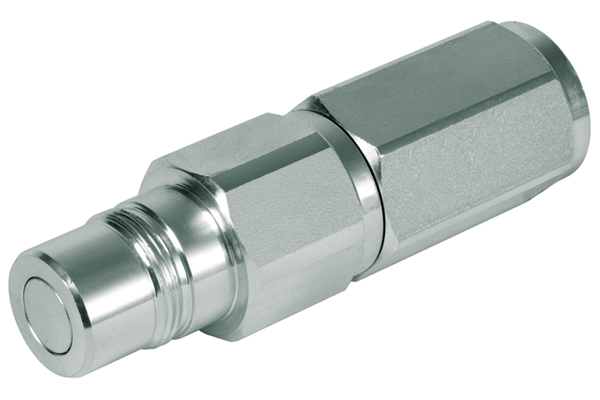

MST3E-H08BSP12S
Coupling insert Cr III 3P

Product info

• Technical data

  DN:	12
  Size:	08
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/2"
  Pipe Ø R [mm]:	-
  Series:	3P
  Manufacturer ID number:	KIT3FNP12GAS M
  Applications:	industry, agricultural technology , power units, construction machines
  Designation:	X
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	.
  Product title short:	hydraulic insert
  Temperature range [°C]:	-25°C /+100°C
