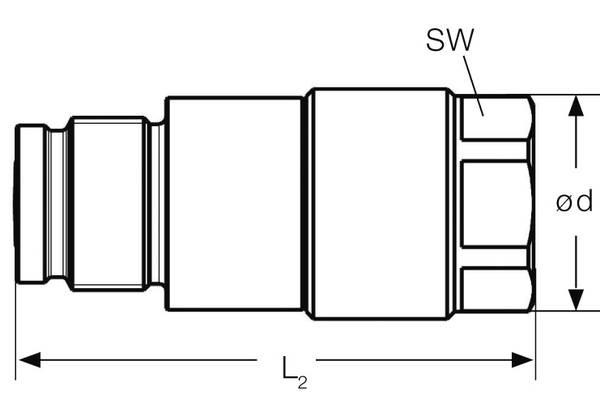

SK-FHV06BSP10S
Screw coupling series SK-FHV (male)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	530
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8

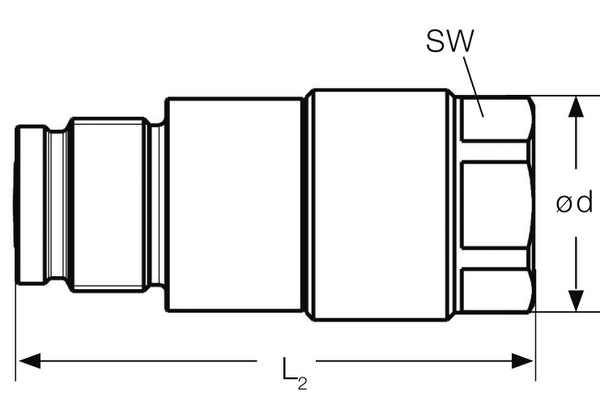

  Outer Ø plug [mm]:	33,0
  Length plug [mm]:	96,8
  SW1 [mm]:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	32
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
