SK-FHV17UNF20S
Screw coupling series SK-FHV (male)

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	460
  Thread + standard:	SAE female-thread ORB ISO 11926-1
  Thread [GA]:	1.1/16

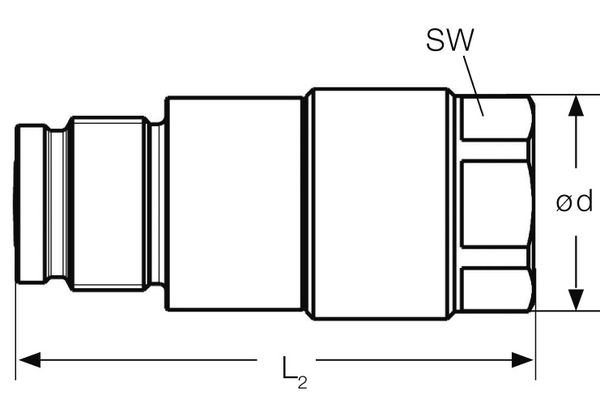

  Outer Ø plug [mm]:	54,5
  Length plug [mm]:	122,5
  SW1 [mm]:	46
  l/min at ΔP=2 bar:	120
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
