SK-FHV20NPT32S
Screw coupling series SK-FHV (male)

Product info

• Technical data

  Size:	8
  DN:	32
  Size:	20
  Inch:	1.1/4
  working pressure [bar]:	460
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1.1/4

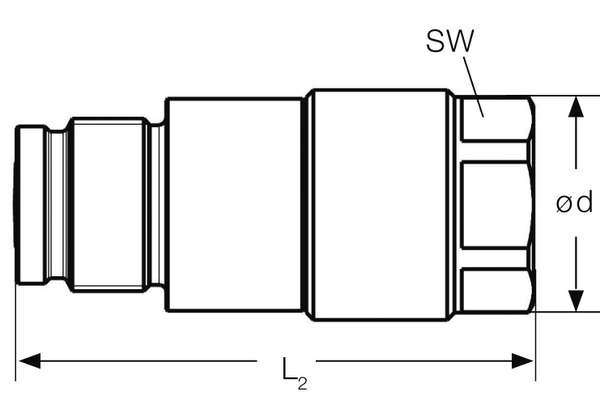

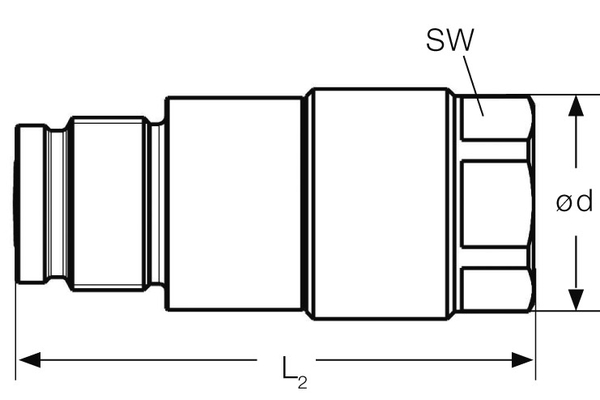

  Outer Ø plug [mm]:	68,0
  Length plug [mm]:	165,8
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	350
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
