SK-VVS04BSP06S

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	800
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/4
  Outer Ø plug [mm]:	14,1
  Length plug [mm]:	43,0
  Wrench size connection side plug:	25
  burst pressure plug uncoupled [bar]:	2400
  burst pressure coupled [bar]:	2500
  burst pressure sleeve uncoupled [bar]:	2400
  l/min at ΔP=2 bar:	8
  L1 [mm]:	B+C -27
  Material:	C-steel, nitrified
  Material support ring:	PTFE

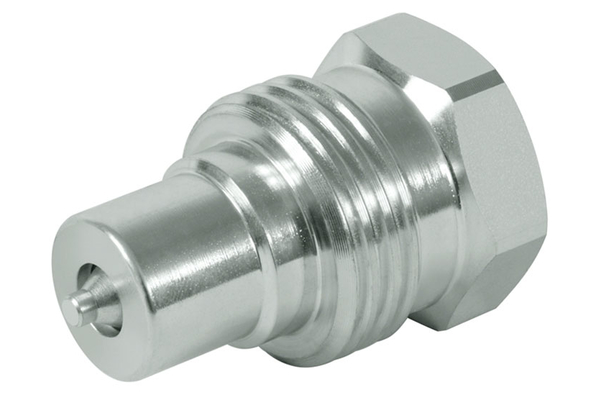

  Product title long:	Series SK-VVS male coupling.
  Product title short:	male coupling
