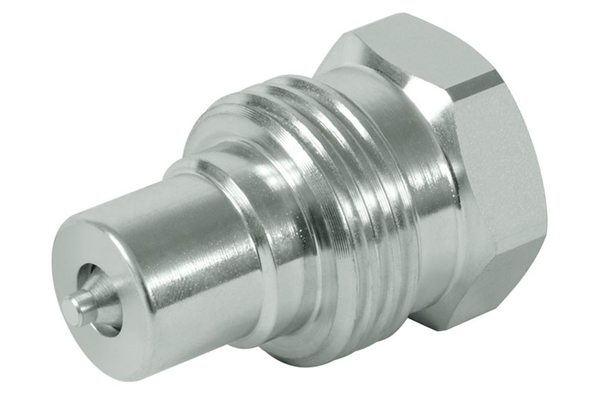

Faster VVS male coupling

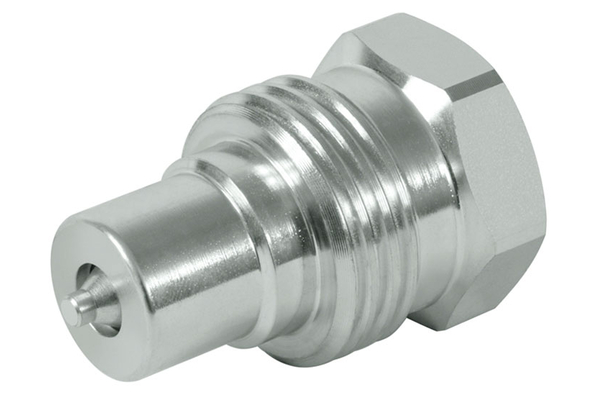

Similar image
To accessories

Detail

Art. No.
SK-VVS04BSP06S
%
SALE
SK-VVS06BSP10S
%
SALE
SK-VVS08BSP12S
%
SALE
SK-VVS06NPT10S
%
SALE
Size
1
2
3
2
DN
06
10
12
10
Size
04
06
08
06
Inch
1/4
3/8
1/2
3/8
working pressure [bar]
800
800
730
800
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
NPT female thread DIN 3852
Thread [GA]
1/4
3/8
1/2
3/8
Outer Ø plug [mm]
14,1
18,9
20,5
18,9
Length plug [mm]
43,0
48,0
53,0
48,0
Wrench size connection side plug
25
32
34
32
burst pressure plug uncoupled [bar]
2400
3400
2200
burst pressure coupled [bar]
2500
2400
2200
burst pressure sleeve uncoupled [bar]
2400
3500
2200
SW1 [mm]
25
l/min at ΔP=2 bar
8
18
30
18
L1 [mm]
B+C -27
B+C -34
B+C -38
Quantity


Product info

  • Technical data
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: plug
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: NBR
    Material support ring: PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25 °C to +125 °C

Benefit

Working pressure up to 800bar, even with a safety factor of 3.

Accessories

dust protection

Practical tip

For the high-pressure range, the SK-PVV series can also be used in many applications.
