SK-VVS08BSP12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	730
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/2
  Outer Ø plug [mm]:	20,5
  Length plug [mm]:	53,0
  Wrench size connection side plug:	34
  burst pressure plug uncoupled [bar]:	2200
  burst pressure coupled [bar]:	2200
  burst pressure sleeve uncoupled [bar]:	2200
  SW1 [mm]:	25
  l/min at ΔP=2 bar:	30
  L1 [mm]:	B+C -38
  Material:	C-steel, nitrified
  Material support ring:	PTFE

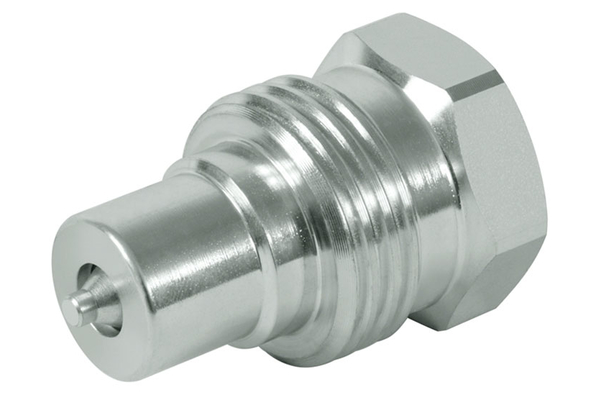

  Product title long:	Series SK-VVS male coupling.
  Product title short:	male coupling
