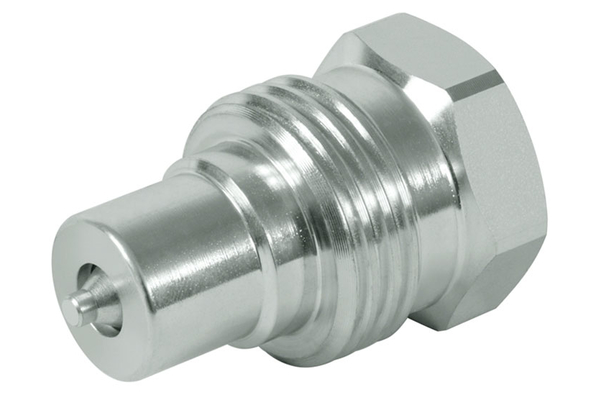

SK-VVS06BSP10S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	800
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/8
  Outer Ø plug [mm]:	18,9
  Length plug [mm]:	48,0
  Wrench size connection side plug:	32
  burst pressure plug uncoupled [bar]:	3400
  burst pressure coupled [bar]:	2400
  burst pressure sleeve uncoupled [bar]:	3500
  l/min at ΔP=2 bar:	18
  L1 [mm]:	B+C -34
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series SK-VVS male coupling.
  Product title short:	male coupling
