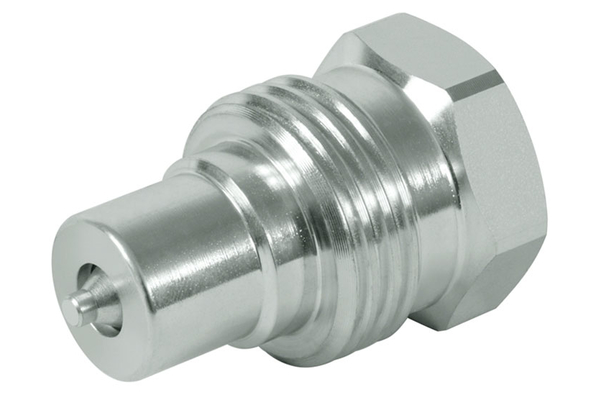

SK-VVS06NPT10S
Screw coupling series SK-VVS (male)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	800
  Thread + standard:	NPT female thread DIN 3852
  Thread [GA]:	3/8
  Outer Ø plug [mm]:	18,9
  Length plug [mm]:	48,0
  Wrench size connection side plug:	32
  l/min at ΔP=2 bar:	18
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Material:	C-steel, nitrified
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	Series SK-VVS male coupling.
  Product title short:	male coupling
  Surface:	galvanised and Cr III passivated
  Temperature range [°C]:	-25 °C to +125 °C
