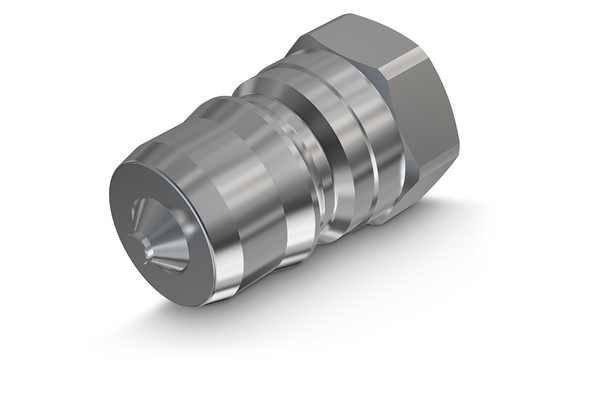

HNV 2 NPT M 2V
Faster HNV-Plug (stainless steel)

Product info

• Technical data

  DN:	50
  Size:	32
  Inch:	2
  working pressure [bar]:	90
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	2

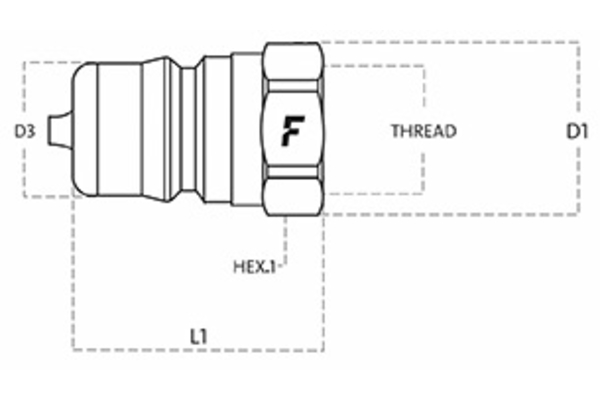

  Outer Ø plug [mm]:	63,2
  Length plug [mm]:	142,0
  SW [mm]:	89
  SW1 [mm]:	89
  l/min at ΔP=2 bar:	1600
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Plug
  Material Casing:	Stainless steel
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
