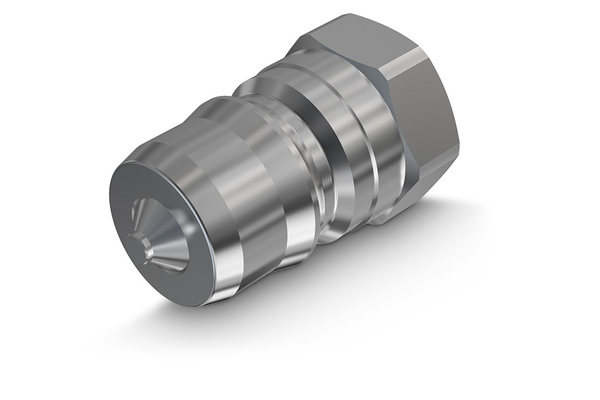

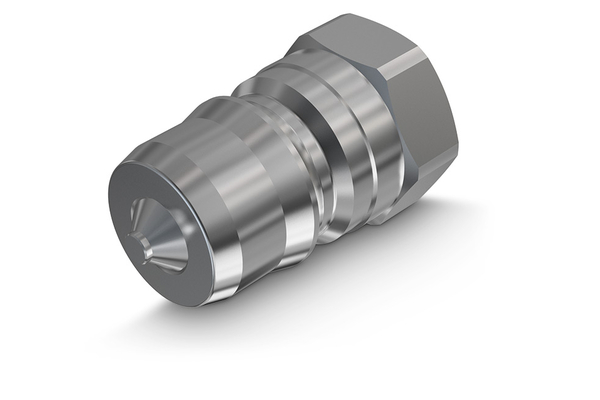

HNV male coupling (stainless steel)

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-1B interchange, stainless-steel version

To accessories

Detail

Art. No.
HNV 14 GAS M 2V
%
SALE
HNV 14 NPT M 2V
%
SALE
HNV 38 GAS M 2V
%
SALE
HNV 38 NPT M 2V
%
SALE
HNV 12 GAS M 2V
%
SALE
HNV 12 NPT M 2V
%
SALE
HNV 34 GAS M 2V
%
SALE
HNV 34 NPT M 2V
%
SALE
HNV 1 GAS M 2V
%
SALE
HNV 1 NPT M 2V
%
SALE
HNV112 NPT M 2V
%
SALE
HNV112-114N M2V
%
SALE
HNV 2 NPT M 2V
%
SALE
Size
1
1
2
2
3
3
4
4
6
6
8
8
DN
06
06
10
10
12
12
20
20
25
25
38
38
50
Size
04
04
06
06
08
08
12
12
16
16
24
24
32
Inch
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
1.1/2
1.1/2
2
working pressure [bar]
350
350
270
270
320
320
250
250
210
210
140
140
90
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
1.1/2
1.1/4
2

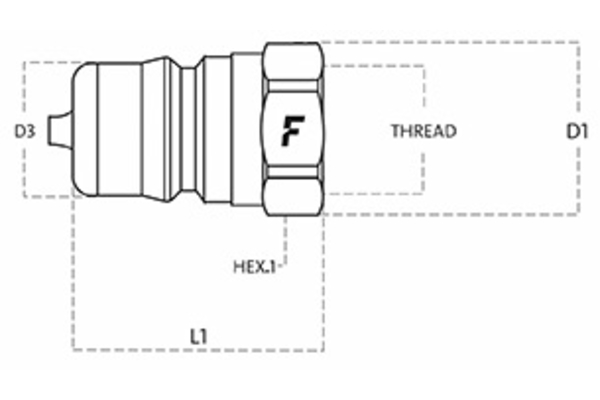

Outer Ø plug [mm]
14,1
14,1
19,0
19,0
23,5
23,5
31,5
31,5
37,8
37,8
44,5
44,5
63,2
Length plug [mm]
35,0
35,0
39,0
39,0
44,0
44,0
55,0
55,0
66,0
66,0
125,0
126,0
142,0
SW [mm]
19
19
22
22
27
27
34
34
41
41
65
65
89
SW1 [mm]
19
19
22
22
27
27
34
34
41
41
65
65
89
l/min at ΔP=2 bar
14
14
27
27
60
60
110
110
150
150
750
750
1600
Quantity


Product info

  • Technical data
    Applications: Industrial, Oil & Gas, Air Conditioning Refrigeration
    Female or male coupling: Plug
    Material Casing: Stainless steel
    Material sealing: FKM
    Standard: ISO 7241-1B
    Temperature range [°C]: -20 °C to 200 °C
