HNV 38 NPT M 2V

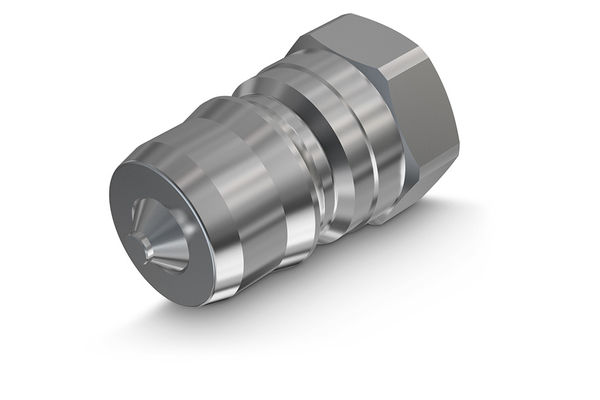

Faster HNV-Plug (stainless steel)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	270
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/8

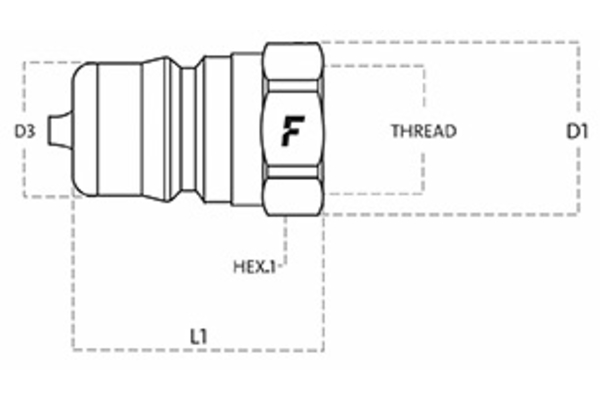

  Outer Ø plug [mm]:	19,0
  Length plug [mm]:	39,0
  SW [mm]:	22
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	27
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Plug
  Material Casing:	Stainless steel
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
