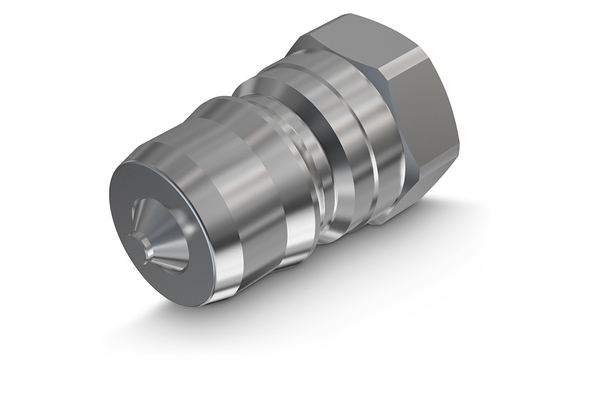

HNV 14 GAS M 2V
Faster HNV-Plug (stainless steel)

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/4

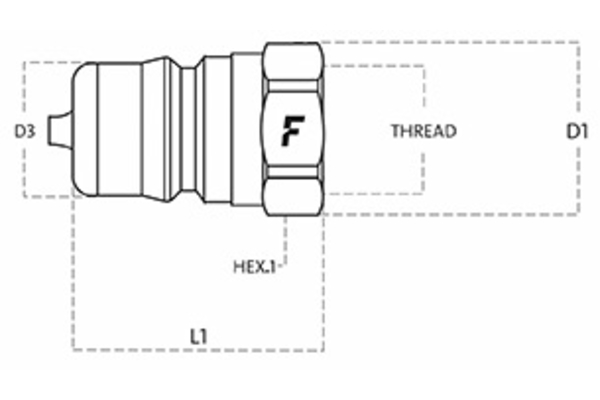

  Outer Ø plug [mm]:	14,1
  Length plug [mm]:	35,0
  SW [mm]:	19
  SW1 [mm]:	19
  l/min at ΔP=2 bar:	14
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Plug
  Material Casing:	Stainless steel
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
