HNV 34 GAS M 2V
Faster HNV-Plug (stainless steel)

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4

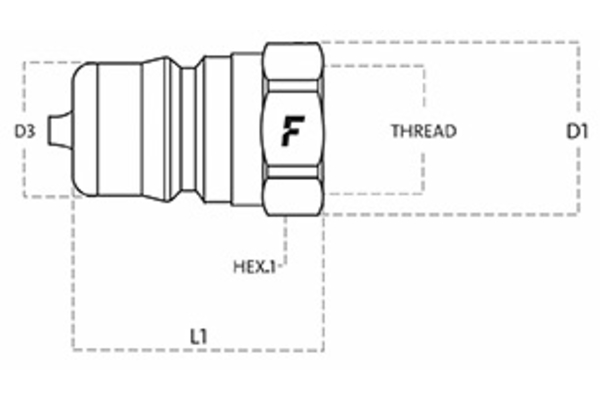

  Outer Ø plug [mm]:	31,5
  Length plug [mm]:	55,0
  SW [mm]:	34
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	110
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Plug
  Material Casing:	Stainless steel
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
