HNV 12 NPT F 5V

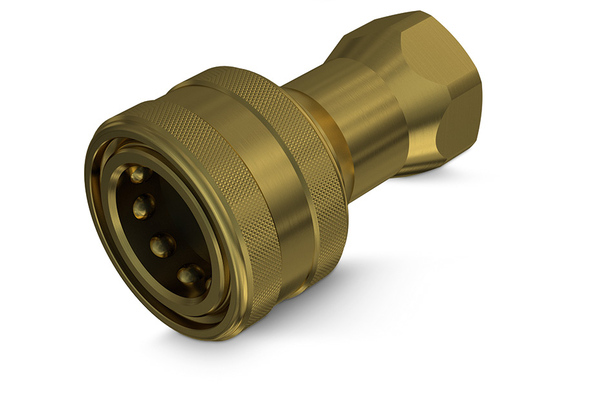

Faster HNV-Sleeve (Brass)

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	170
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/2
  Outer Ø sleeve [mm]:	44,0
  Length sleeve [mm]:	71,5
  SW [mm]:	44
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	60
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
