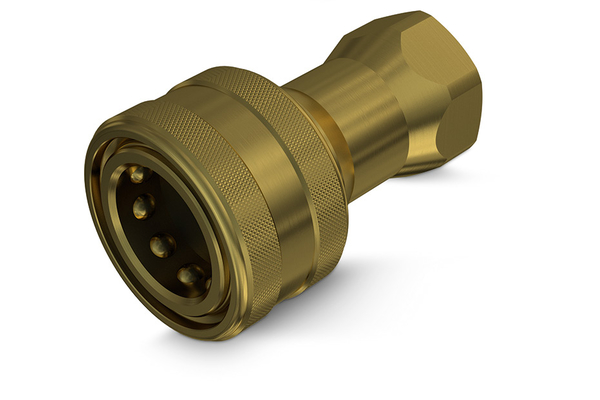

HNV brass female coupling

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-1B interchange, brass versions

To accessories

Detail

Art. No.
HNV 18 GAS F 5
%
SALE
HNV 18 GAS F 5V
%
SALE
HNV 18 NPT F 5
%
SALE
HNV 14 GAS F 5
%
SALE
HNV 14 GAS F 5V
%
SALE
HNV 14 NPT F 5
%
SALE
HNV 14 NPT F 5V
%
SALE
HNV 38 GAS F 5
%
SALE
HNV 38 GAS F 5V
%
SALE
HNV 38 NPT F 5
%
SALE
HNV 12 GAS F 5
%
SALE
HNV 12 GAS F 5V
%
SALE
HNV 12 NPT F 5
%
SALE
HNV 12 NPT F 5V
%
SALE
HNV 34 GAS F 5
%
SALE
HNV 34 GAS F 5V
%
SALE
HNV 34 NPT F 5
%
SALE
HNV 1 GAS F 5
%
SALE
HNV 1 GAS F 5V
%
SALE
HNV 1 NPT F 5
%
SALE
HNV112 GAS F 5
%
SALE
HNV112 GAS F5V
%
SALE
Size
1
1
1
1
2
2
2
3
3
3
3
4
4
4
6
6
6
8
8
DN
05
05
05
06
06
06
06
10
10
10
12
12
12
12
20
20
25
25
25
38
38
Size
02
02
02
04
04
04
04
06
06
06
08
08
08
08
12
12
12
16
16
16
24
24
Inch
1/8
1/8
1/8
1/4
1/4
1/4
1/4
3/8
3/8
3/8
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1
1.1/2
1.1/2
working pressure [bar]
220
220
220
200
200
200
200
150
150
150
170
170
170
170
100
100
100
140
140
140
70
70
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thead ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
1/8
1/8
1/8
1/4
1/4
1/4
1/4
3/8
3/8
3/8
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1
1.1/2
1.1/2

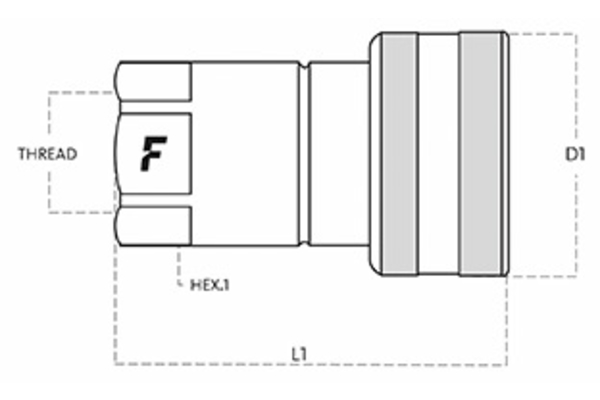

Outer Ø sleeve [mm]
23,0
23,0
23,0
28,0
28,0
56,0
28,0
35,0
35,0
35,0
44,0
44,0
44,0
44,0
52,0
52,0
52,0
62,0
62
62,0
75,0
75,0
Length sleeve [mm]
50,0
50,0
50,0
56,0
56,0
56,0
56,0
64,0
64,0
64,0
71,6
71,6
71,5
71,5
89,0
89,0
89,0
106,0
106,0
106,0
126,0
126,0
SW [mm]
18
18
18
19
19
19
19
24
24
24
44
44
44
44
36
36
36
41
41
41
65
65
SW1 [mm]
18
18
18
19
19
19
19
24
24
24
30
30
30
30
36
36
36
41
41
41
65
65
l/min at ΔP=2 bar
6
6
6
16
16
16
16
25
25
25
60
60
60
60
110
110
110
150
150
150
750
750
Quantity


Product info

  • Technical data
    Applications: Industrial, Oil & Gas, Air Conditioning Refrigeration
    Female or male coupling: Sleeve
    Material Casing: Brass
    Material sealing: NBR
    Standard: ISO 7241-1B
    Temperature range [°C]: -25 °C to 125 °C
