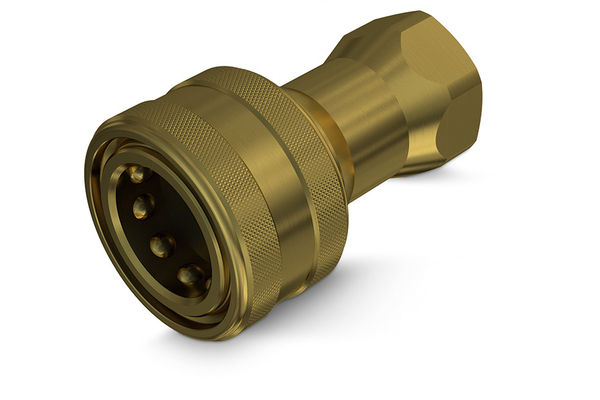

HNV 18 GAS F 5V
Faster HNV-Sleeve (Brass)

Product info

• Technical data

  DN:	05
  Size:	02
  Inch:	1/8
  working pressure [bar]:	220
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/8
  Outer Ø sleeve [mm]:	23,0
  Length sleeve [mm]:	50,0
  SW [mm]:	18
  SW1 [mm]:	18
  l/min at ΔP=2 bar:	6
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
