HNV 34 GAS F 5

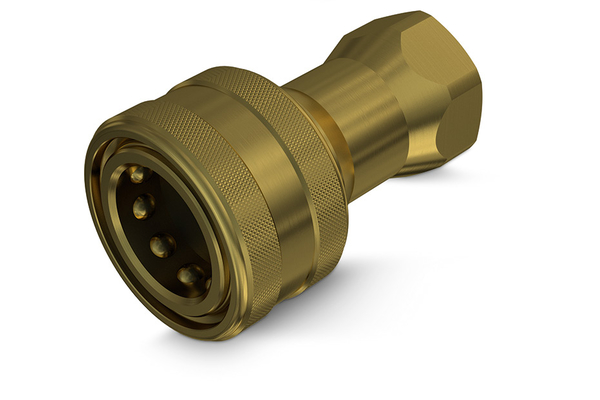

Faster HNV-Sleeve (Brass)

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	100
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4
  Outer Ø sleeve [mm]:	52,0
  Length sleeve [mm]:	89,0
  SW [mm]:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	110
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	NBR
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-25 °C to 125 °C
