HNV 38 NPT F 5

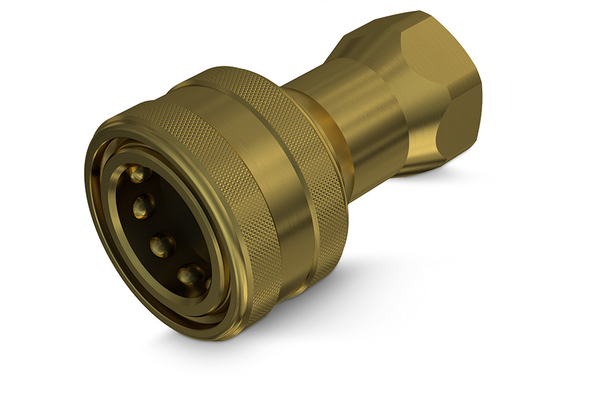

Faster HNV-Sleeve (Brass)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	150
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/8
  Outer Ø sleeve [mm]:	35,0
  Length sleeve [mm]:	64,0
  SW [mm]:	24
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	25
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	NBR
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-25 °C to 125 °C
