HNV112 GAS F5V

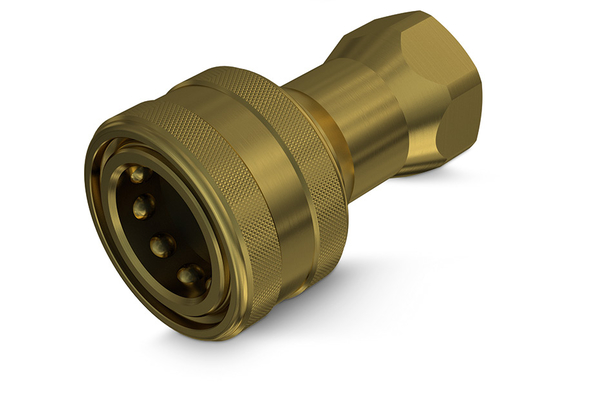

Faster HNV-Sleeve (Brass)

Product info

• Technical data

  Size:	8
  DN:	38
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	70
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1.1/2
  Outer Ø sleeve [mm]:	75,0
  Length sleeve [mm]:	126,0
  SW [mm]:	65
  SW1 [mm]:	65
  l/min at ΔP=2 bar:	750
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
