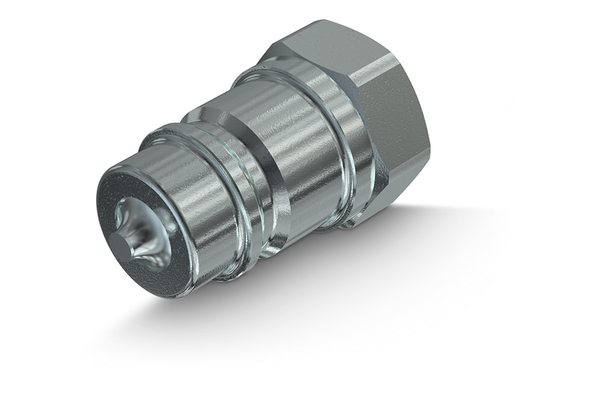

NV 2 GAS M
Faster NV-Plug

Product info

• Technical data

  DN:	50
  Size:	32
  Inch:	2
  working pressure [bar]:	150
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	2

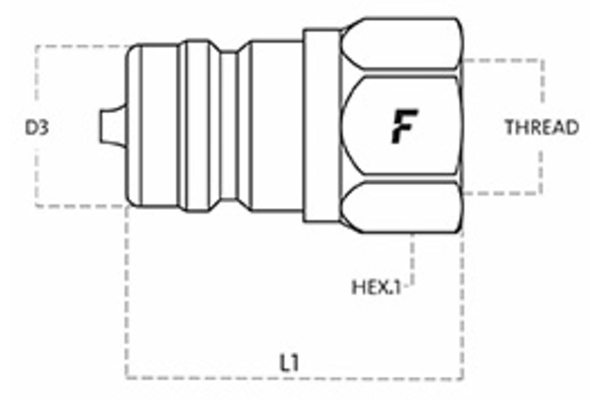

  Outer Ø plug [mm]:	82,0
  Length plug [mm]:	100,0
  SW [mm]:	75
  SW1 [mm]:	75
  l/min at ΔP=2 bar:	1000
  Applications:	Agriculture, Construction Equipment, Industrial
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
