SK-CVC14UNF12S
Screw coupling series SK-CVC (male)

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	340
  Thread + standard:	0/ SAE ISO 11926-1
  Thread [GA]:	7/8"-14 UNF FEMALE ORB
  Outer Ø plug [mm]:	45
  Length plug [mm]:	63

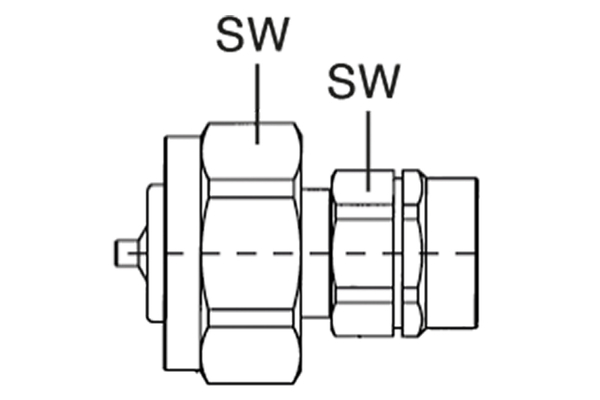

  SW2 [mm]:	41
  SW1 [mm]:	30
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	50
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC male coupling
  Product title short:	male coupling
  Surface:	galvanised and Cr III passivated
  Temperature range [°C]:	-25°C / +125°C
