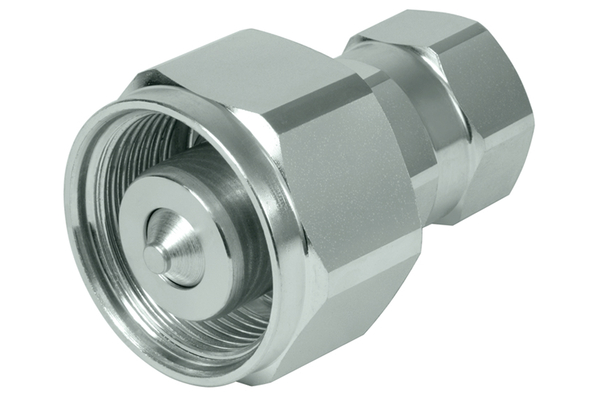

SK-CVC male coupling

Similar image
Similar image

For applications in the construction industry (CAT coupling)

To accessories

Detail

Art. No.
SK-CVC14UNF12S
%
SALE
SK-CVC08BSP12S
%
SALE
SK-CVC22CEL15-12S
%
SALE
SK-CVC22M12S
%
SALE
SK-CVC19UNF25S
%
SALE
SK-CVC30M25S
%
SALE
SK-CVC36CES25-25S
%
SALE
SK-CVC42CES30-25S
%
SALE
SK-CVC10ORMS12S
%
SALE
SK-CVC08ORMS12S
%
SALE
SK-CVC12SAE25S
%
SALE
Size
3
3
6
3
3
6
DN
12
12
12
12
25
25
25
25
12
12
25
Size
08
08
08
08
16
16
16
16
08
08
16
Inch
1/2
1/2
1/2
1/2
1
1
1
1
1/2
1/2
1
working pressure [bar]
340
340
340
340
340
340
340
340
340
340
340
Thread + standard
0/ SAE ISO 11926-1
BSP female DIN 3852
0/METRIC ISO 6149-1
metric female thread DIN 3852
0/SAE ISO 11926-1
metric female thread DIN 3852
03/METRIC ISO 8434-1-S
03/METRIC ISO 8434-1-S
ORFS Bulkheadmale thread
ORFS Bulkheadmale thread
SAE flange
Thread [GA]
7/8"-14 UNF FEMALE ORB
1/2
M22x1,5 MALE 15L
M22x1,5
1-3/16"-12 UN FEMALE ORB
M30x1,5
M36x2 MALE 25S
M42x2 MALE 30S
1"
1
3/4
Outer Ø plug [mm]
45
45,0
45
45,0
72
72,0
54
72
45,0
45,0
72,0
Connection thread
Rd35x2
Rd35x2
Rd54x3
Rd35x2
Rd35x2
Rd54x3
Length plug [mm]
63
48,0
58
60,0
90
97,1
91
88
80,4
80,4
89,0

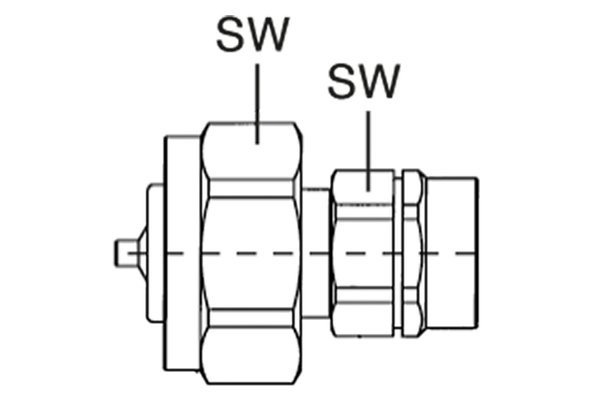

Wrench size connection side plug
41
41
65
41
41
65
SW2 [mm]
41
27
41
27
42
65
65
27
27
-
SW1 [mm]
30
27
27
42
42
38
46
34
27
42
SW1 [mm]
30
27
38
46
l/min at ΔP=2 bar
50
50
50
160
160
160
160
160
50
50
160
Quantity


Product info

Benefit

designed for heavy duty applications. Widely installed at leading OEMs (such as CATERPILLAR)

Accessories

dust protection

Practical tip

You might connect against residual pressure (one way, either male or female part)
