SK-CVC22M12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	340
  Thread + standard:	metric female thread DIN 3852
  Thread [GA]:	M22x1,5
  Outer Ø plug [mm]:	45,0
  Connection thread:	Rd35x2
  Length plug [mm]:	60,0

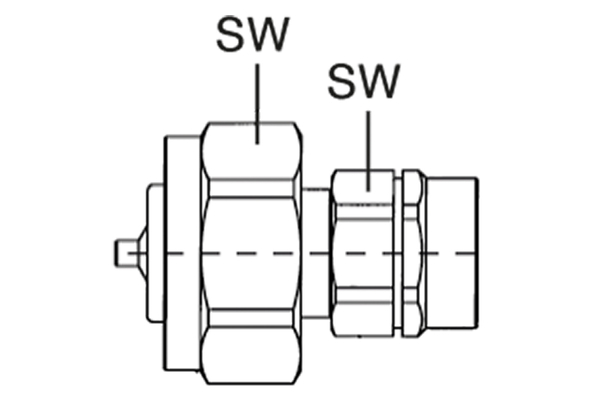

  Wrench size connection side plug:	41
  SW2 [mm]:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	160
  Material:	steel EN 10277
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC male coupling
  Product title short:	male coupling
