SK-CVC42CES30-25S
Screw coupling series SK-CVC (male)

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	340
  Thread + standard:	03/METRIC ISO 8434-1-S
  Thread [GA]:	M42x2 MALE 30S
  Outer Ø plug [mm]:	72
  Length plug [mm]:	88

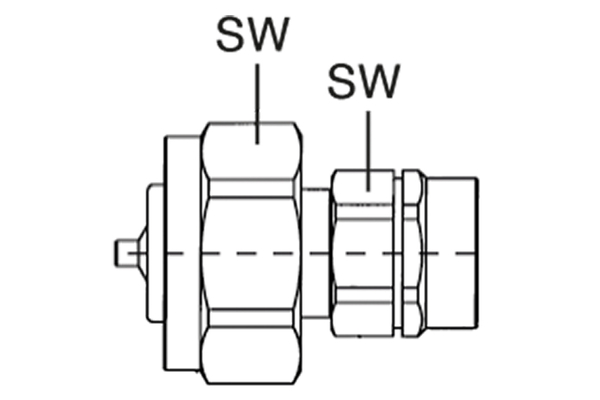

  SW2 [mm]:	65
  SW1 [mm]:	46
  SW1 [mm]:	46
  l/min at ΔP=2 bar:	160
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC male coupling
  Product title short:	male coupling
  Surface:	galvanised and Cr III passivated
  Temperature range [°C]:	-25°C / +125 °C
