SK-CVC30M25S

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	340
  Thread + standard:	metric female thread DIN 3852
  Thread [GA]:	M30x1,5
  Outer Ø plug [mm]:	72,0
  Connection thread:	Rd54x3
  Length plug [mm]:	97,1

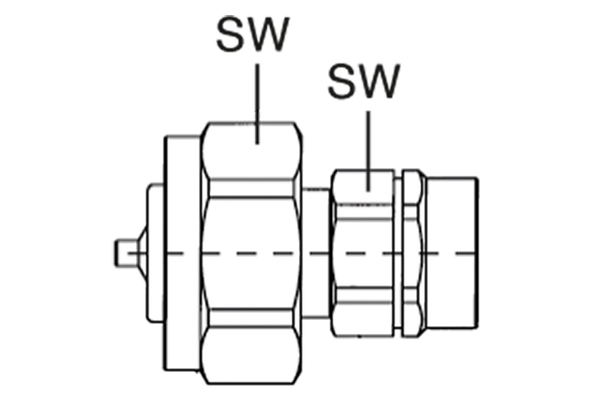

  Wrench size connection side plug:	65
  SW2 [mm]:	42
  SW1 [mm]:	42
  l/min at ΔP=2 bar:	160
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC male coupling
  Product title short:	male coupling
