SK-HK24BSP40S

Product info

• Technical data

  DN:	40
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	270
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1.1/2
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung
  Outer Ø plug [mm]:	57,0
  Length plug [mm]:	90,0
  Wrench size connection side plug:	55
  burst pressure plug uncoupled [bar]:	950
  SW2 [mm]:	87
  SW1 [mm]:	55
  SW2 [mm]:	87
  burst pressure coupled [bar]:	1100
  burst pressure sleeve uncoupled [bar]:	1500
  l/min at ΔP=2 bar:	379
  Form of the sealing valve:	poppet
  Material:	steel
  Material support ring:	PTFE

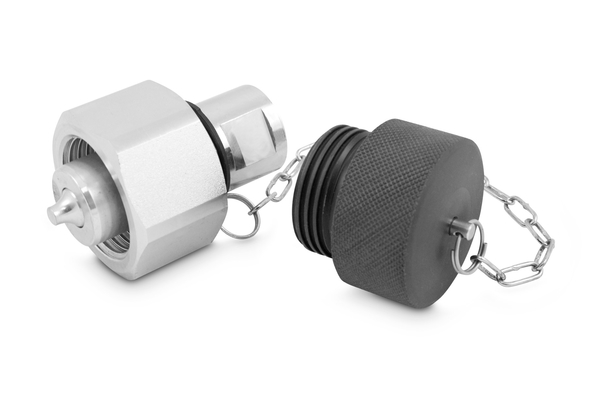

  Product title long:	Series SK-HK male coupling.
  Product title short:	male coupling
