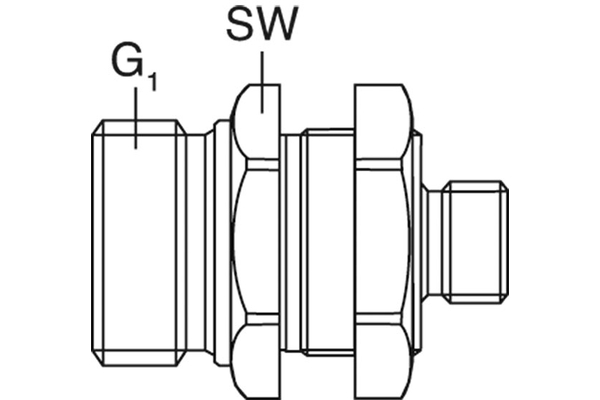

SK6-RK2-26CEL18-25M
SK-RK sleeve

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	420
  Thread + standard:	Metric male-thead ISO 8434-1-L
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18L
  Outer Ø sleeve [mm]:	54,0
  Connection thread:	Rd54x4
  Length sleeve [mm]:	96,0
  Wrench size connection side sleeve:	46
  SW2 [mm]:	60
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	189
  Applications:	commercial vehicle industry
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
