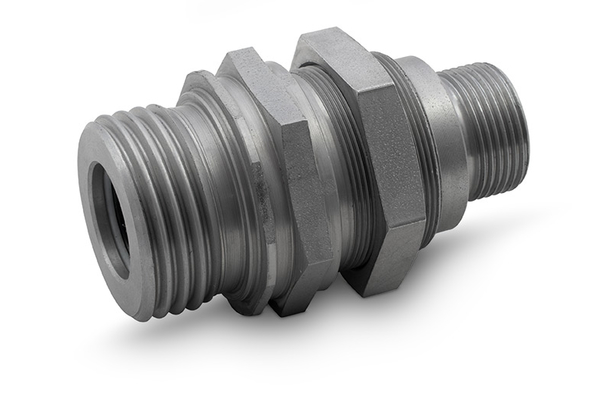

SK8-RK2-45CEL35-32M
SK-RK sleeve

Product info

• Technical data

  Size:	8
  DN:	32
  Size:	20
  Inch:	1.1/4
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-L

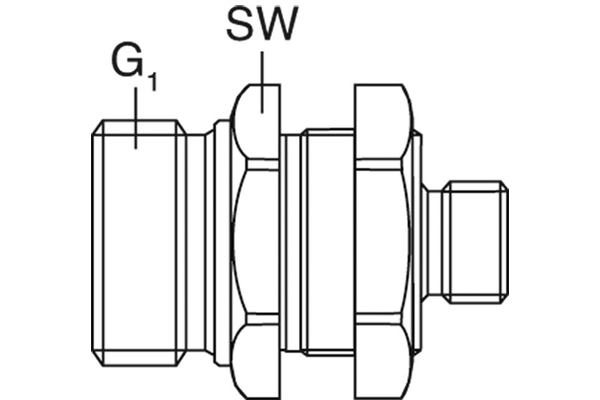

  Thread [GA]:	M45x2
  Pipe Ø R [mm]:	35L
  Outer Ø sleeve [mm]:	79,0
  Connection thread:	Rd79x4
  Length sleeve [mm]:	129,0
  Wrench size connection side sleeve:	55
  SW1 [mm]:	85
  l/min at ΔP=2 bar:	420
  Applications:	commercial vehicle industry
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
