Art. No.: SK-VVS04NPT06M
List number: 23826660

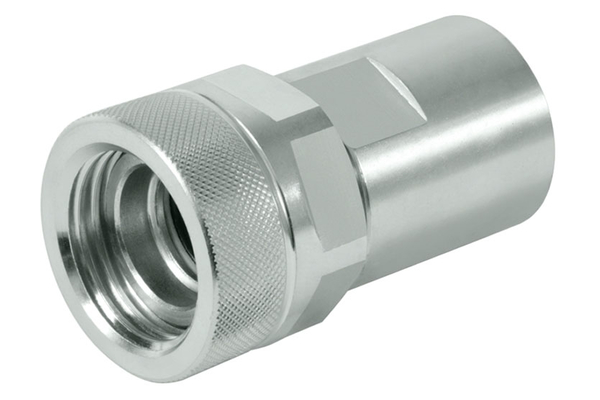

Screw-on couplings commonly used for applications characterized by very high working pressures and peaks. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile. Interchangeable with Faster VV series.
| DN: | 06 |
| Size: | 04 |
| Inch: | 1/4 |
| working pressure [bar]: | 800 |
| Thread + standard: | ANSI B1.20.3 |
| Thread [GA]: | G1/4"-19 |
| Outer Ø sleeve [mm]: | 30 |
| Length sleeve [mm]: | 68 |
| SW2 [mm]: | 27 |
| SW1 [mm]: | 22 |
| l/min at ΔP=2 bar: | 8 |
| Product title long: | Series SK-VVS female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
