Art. No.: SK-VVS20NPT32M
List number: 23827000

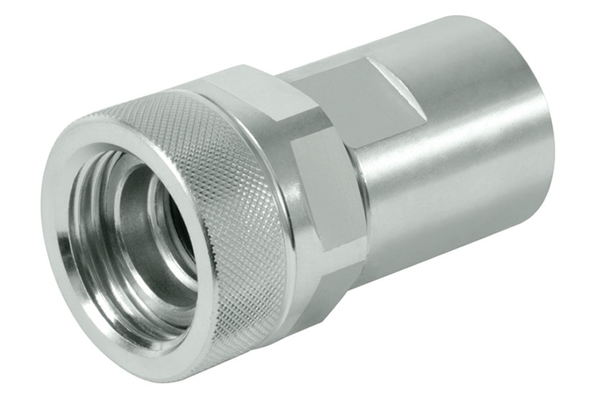

Screw-on couplings commonly used for applications characterized by very high working pressures and peaks. Heavy duty internal components guarantee the maximum safety and reliability. Faster proprietary profile. Interchangeable with Faster VV series.
| DN: | 31 |
| Size: | 20 |
| Inch: | 1.1/4 |
| working pressure [bar]: | 600 |
| Thread + standard: | ANSI B1.20.3 |
| Thread [GA]: | G1.1/4"-11 |
| Outer Ø sleeve [mm]: | 80 |
| Length sleeve [mm]: | 152 |
| SW2 [mm]: | 75 |
| SW1 [mm]: | 65 |
| l/min at ΔP=2 bar: | 140 |
| Material support ring: | PTFE |
| Product title long: | Series SK-VVS female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
