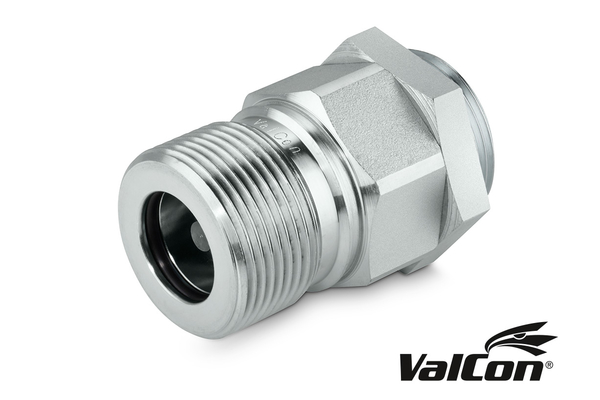

VC-ED16BSP25M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	300
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1
  Outer Ø sleeve [mm]:	53,2
  Length sleeve [mm]:	83,0
  Wrench size connection side plug:	55.0
  Wrench size connection side sleeve:	55
  burst pressure plug uncoupled [bar]:	1200
  SW1 [mm]:	55
  Ø D [mm]:	115
  burst pressure sleeve uncoupled [bar]:	900
  l/min at ΔP=2 bar:	189
  L1 [mm]:	145,0
  Material:	steel
  Material support ring:	PTFE
  Product title long:	screw coupling ValCon®.
