VC-HDS8-CES30-32M

Product info

• Technical data

  Size:	8
  DN:	32
  Size:	20
  Inch:	1 1/4
  working pressure [bar]:	333
  Thread + standard:	CE male thread heavy Series, DIN 3861
  Thread [GA]:	M42x2
  Pipe Ø R [mm]:	30S
  Outer Ø sleeve [mm]:	78,0
  Connection thread:	M70x3
  Length sleeve [mm]:	121,7
  Ø D [mm]:	78
  burst pressure coupled [bar]:	1000
  GL [mm]:	20
  burst pressure sleeve uncoupled [bar]:	1000
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	288
  Form of the sealing valve:	poppet
  Material support ring:	PTFE

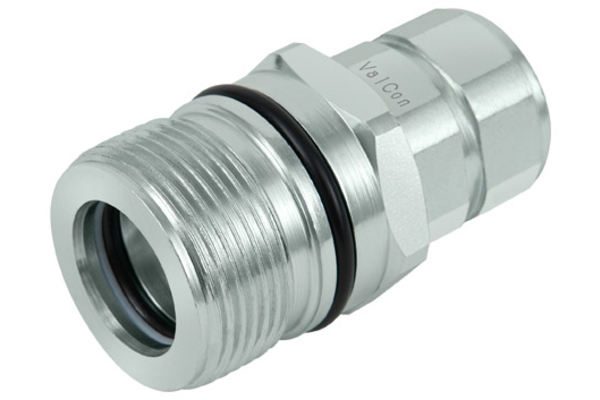

  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
