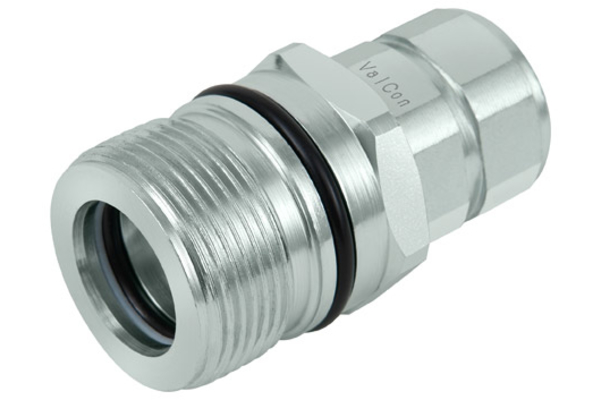

Valcon® VC-HDS female coupling

Detail

Size
2
3
3
6
6
3
2
3
3
3
4
4
6
6
6
2
3
3
4
6
6
6
8
2
3
3
3
4
3
3
6
6
6
4
4
8
DN
10
12
12
25
25
12
10
12
12
12
20
20
25
25
25
10
12
12
20
25
25
25
32
10
12
12
12
20
12
12
25
25
25
20
20
32
Size
06
08
08
16
16
8
06
08
08
08
12
12
16
16
16
06
08
08
12
16
16
16
20
06
08
08
08
12
08
08
16
16
16
12
12
20
Inch
3/8
1/2
1/2
1
1
1/2
3/8
1/2
1/2
1/2
3/4
3/4
1
1
1
3/8
1/2
1/2
3/4
1
1
1
1 1/4
3/8
1/2
1/2
1/2
3/4
1/2
1/2
1
1
1
3/4
3/4
1 1/4
working pressure [bar]
433
400
400
333
333
400
433
400
400
400
333
333
333
333
333
433
400
400
333
333
333
333
333
433
400
400
400
333
400
400
333
333
333
333
333
333
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP male thread DIN 3863 (60°)
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread light Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
CE male thread heavy Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
CE Bulkhead-male thread heavy Seriess, DIN 3861
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
Thread [GA]
3/8
3/8
1/2
3/4
1
1/2
M16x1,5
M16x1,5
M18x1,5
M22x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M20x1,5
M20x1,5
M24x1,5
M24x1,5
M36x2
M30x2
M42x2
M42x2
M16x1,5
M36x2
M18x1,5
M22x1,5
M22x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
1/2
3/4
1 1/2
Pipe Ø R [mm]
-
-
-
-
-
-
10L
10L
12L
15L
12L
15L
18L
22L
28L
12S
12S
16S
16S
25S
20S
30S
30S
10L
10L
12L
15L
15L
12S
16S
20S
25S
30S
-
-
-
Outer Ø sleeve [mm]
34,0
40,0
40,0
54,0
54,0
40,0
34,0
40,0
40,0
40,0
44,0
44,0
54,0
54,0
54,0
34,0
40,0
40,0
44,0
54,0
54,0
54,0
78,0
34,0
40,0
40,0
40,0
44,0
40,0
40,0
54,0
54,0
54,0
44,0
44,0
78,0
Connection thread
M28x2
M36x2
M36x2
M48x3
M48x3
M36x2
M28x2
M36x2
M36x2
M36x2
M42x2
M42x2
M48x3
M48x3
M48x3
M28x2
M36x2
M36x2
M42x2
M48x3
M48x3
M48x3
M70x3
M28x2
M36x2
M36x2
M36x2
M42x2
M36x2
M36x2
M48x3
M48x3
M48x3
M42x2
M42x2
M70x3
Length sleeve [mm]
64,0
67,0
67,0
100,0
100,0
71,0
62,8
65,0
65,0
66,0
81,0
82,0
95,0
95,0
95,0
63,8
68,0
68,0
84,0
99,0
97,0
101,0
121,7
77,8
80,0
80,0
81,0
97,0
81,0
83,0
117,0
119,0
121,0
83,5
85,5
120,7
SW [mm]
30
SW1 [mm]
30
Ø D [mm]
54
78
burst pressure coupled [bar]
1800
1400
1400
1400
1400
1400
1800
1400
1400
1400
1400
1400
1400
1400
1400
1800
1400
1400
1400
1400
1400
1400
1000
1800
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1400
1000
GL [mm]
13
11
11
11
12
11
12
12
14
14
12
12
14
14
16
20
20
26
26
26
27
27
27
29
36
38
40
burst pressure sleeve uncoupled [bar]
1300
1500
1500
1300
1300
1500
1300
1500
1500
1500
1300
1300
1300
1300
1300
1300
1500
1500
1300
1300
1300
1300
1000
1300
1500
1500
1500
1300
1500
1500
1300
1300
1300
1300
1300
1000
SW1 [mm]
22
30
30
41
41
30
22
30
30
30
36
36
41
41
41
22
30
30
36
41
41
46
55
22
30
30
30
36
30
30
41
41
46
36
36
55
l/min at ΔP=2 bar
46
90
90
280
280
90
46
90
90
90
190
190
280
280
280
46
90
90
190
189
280
189
288
46
45
90
90
190
90
90
280
280
280
190
190
480
Quantity


Product info

Benefit

High wear resistance even in demanding applications in the construction industry. Interchangeable according to ISO14541

Accessories

dust protection and sealings

Practical tip

You might connect against residual pressure (one way, either male or female part)
