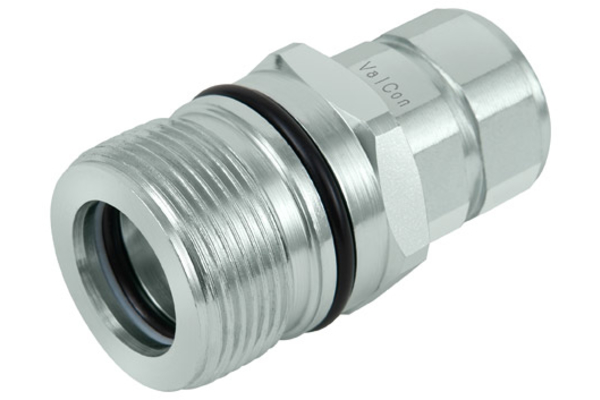

VC-HDS6-CEL22-25M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	333
  Thread + standard:	CE male thread light Series, DIN 3861
  Thread [GA]:	M30x2
  Pipe Ø R [mm]:	22L
  Outer Ø sleeve [mm]:	54,0
  Connection thread:	M48x3
  Length sleeve [mm]:	95,0
  burst pressure coupled [bar]:	1400
  GL [mm]:	14
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	280
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
