VC-HDS6-IG3/4BSP25M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	333
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/4
  Pipe Ø R [mm]:	-

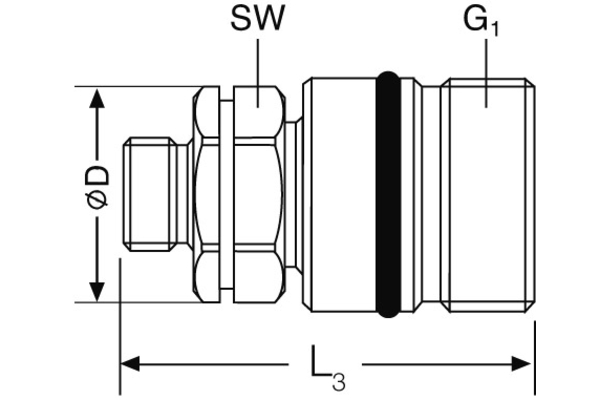

  Outer Ø sleeve [mm]:	54,0
  Connection thread:	M48x3
  Length sleeve [mm]:	100,0
  burst pressure coupled [bar]:	1400
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	280
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
