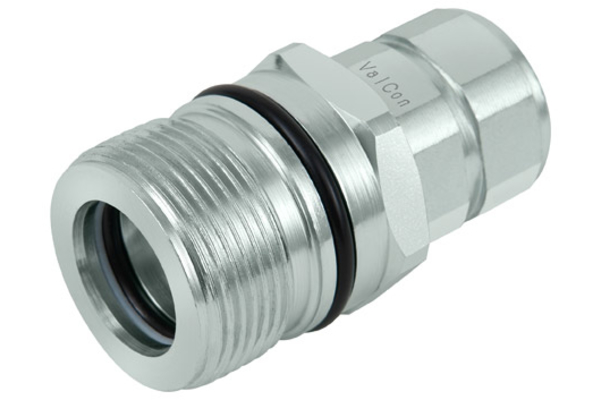

VC-HDS2-CEL10-10M

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	433
  Thread + standard:	CE male thread light Series, DIN 3861
  Thread [GA]:	M16x1,5
  Pipe Ø R [mm]:	10L
  Outer Ø sleeve [mm]:	34,0
  Connection thread:	M28x2
  Length sleeve [mm]:	62,8
  burst pressure coupled [bar]:	1800
  GL [mm]:	11
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	46
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
