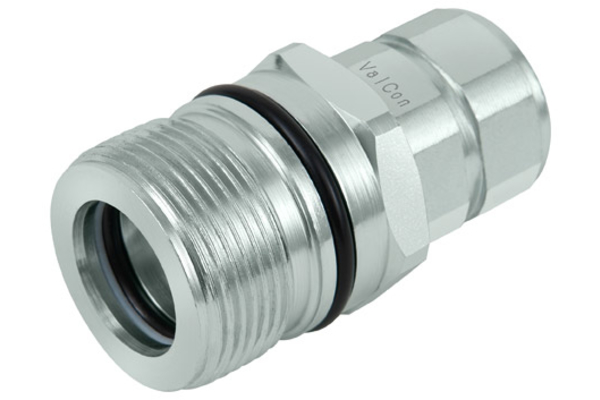

VC-HDS4-CES16-20M

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	333
  Thread + standard:	CE male thread heavy Series, DIN 3861
  Thread [GA]:	M24x1,5
  Pipe Ø R [mm]:	16S
  Outer Ø sleeve [mm]:	44,0
  Connection thread:	M42x2
  Length sleeve [mm]:	84,0
  burst pressure coupled [bar]:	1400
  GL [mm]:	14
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	190
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
