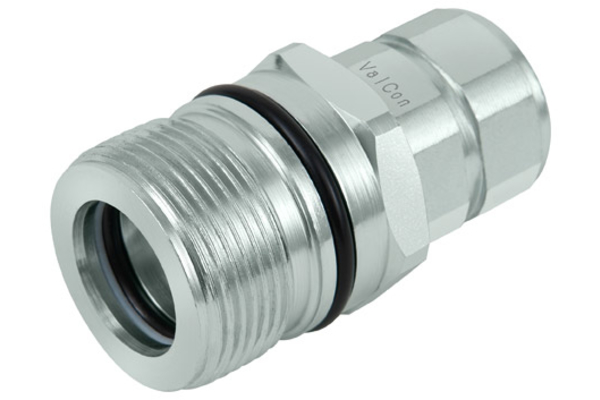

VC-HDS4-CEL15-20M

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	333
  Thread + standard:	CE male thread light Series, DIN 3861
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L
  Outer Ø sleeve [mm]:	44,0
  Connection thread:	M42x2
  Length sleeve [mm]:	82,0
  burst pressure coupled [bar]:	1400
  GL [mm]:	12
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	190
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 female coupling.
  Product title short:	female coupling
