ST-FF02BSP05S
Plug-in coupling series ST-FF (male)

Product info

• Technical data

  DN:	05
  Size:	02
  Inch:	1/8
  working pressure [bar]:	350
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/8"

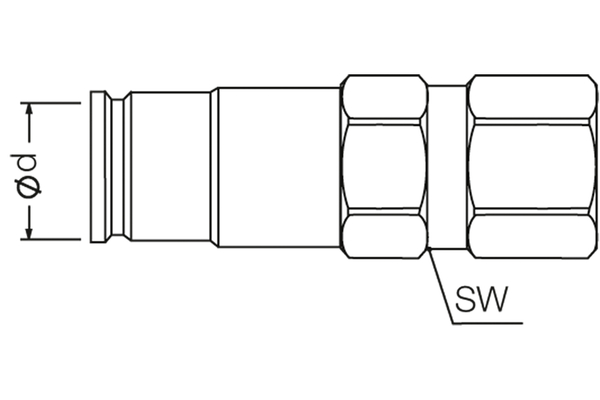

  Outer Ø plug [mm]:	11,6
  Length plug [mm]:	44
  SW1 [mm]:	16
  l/min at ΔP=2 bar:	12
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	500
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25°C to +100°C
