ST-FF16NMF25S
Plug-in coupling series ST-FF Plug

Product info

• Technical data

  Size:	8
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	350
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1"

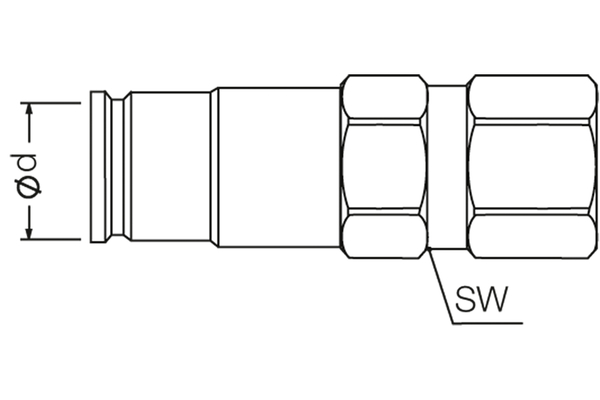

  Outer Ø plug [mm]:	36,0
  Length plug [mm]:	107,5
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	230
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Mate 1000 (Zinc-Nickel)
  Temperature range [°C]:	-25°C to +100°C
