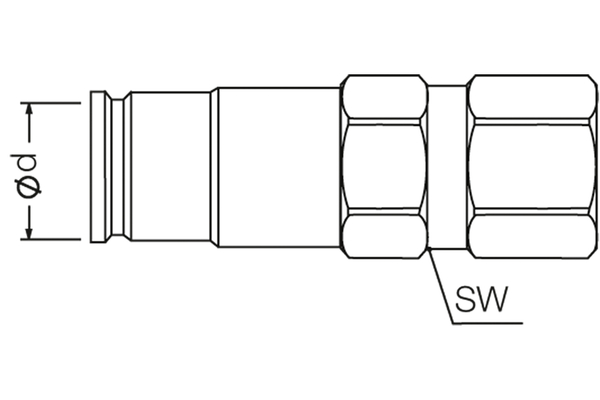

ST-FF26CELS18-16S
Plug-in coupling series ST-FF Plug

Product info

• Technical data

  Size:	4
  DN:	16
  Size:	10
  Inch:	5/8
  working pressure [bar]:	350
  Thread + standard:	Metric bulkhead ISO 8434-1-L
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18L
  Outer Ø plug [mm]:	27,0
  Length plug [mm]:	115,7
  SW2 [mm]:	36
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	125
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Mate 1000 (Zinc-Nickel)
  Temperature range [°C]:	-25°C to +100°C
