Art. No.: ST-HNV04BSP06VA-S
List number: 22207050
Standard couplings for industrial applications, interchangeability according to ISO 7241-B
| Size: | 1 |
| DN: | 06 |
| Size: | 04 |
| Inch: | 1/4 |
| working pressure [bar]: | 350 |
| Thread + standard: | BSP female DIN 3852 |
| Thread [GA]: | 1/4 |

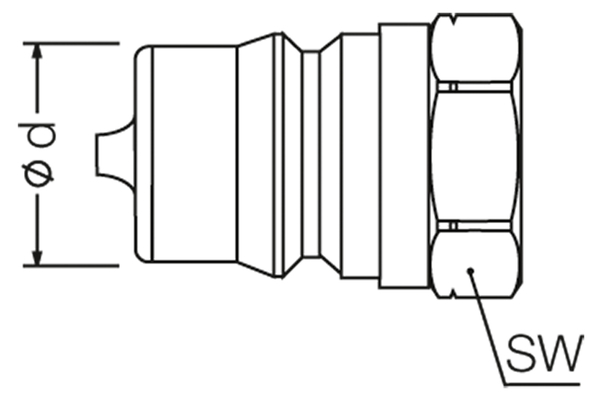

| Outer Ø plug [mm]: | 14,2 |
| Length plug [mm]: | 38,0 |
| SW [mm]: | 19 |
| Wrench size connection side sleeve: | 19 |
| SW1 [mm]: | 19 |
| l/min at ΔP=2 bar: | 12 |
| Material: | AISI 316; (1.4436) |
| Material support ring: | PTFE |

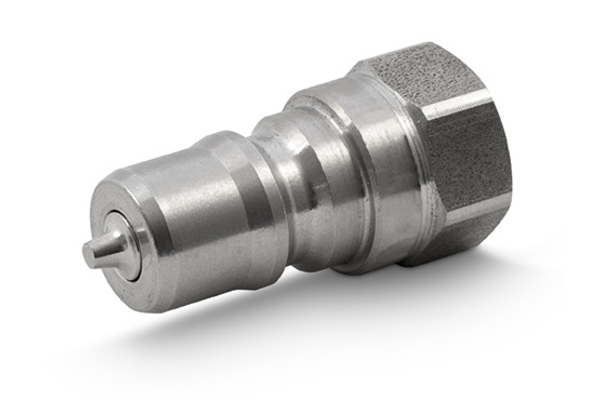

| Product title long: | Series ST-HNV-VA male coupling. |
| Product title short: | male coupling |
Reserve technical changes.
