| Size: | 4 |
| DN: | 20 |
| Size: | 12 |
| Inch: | 3/4 |
| working pressure [bar]: | 300 |
| Thread + standard: | BSP female DIN 3852 |
| Thread [GA]: | 3/4 |

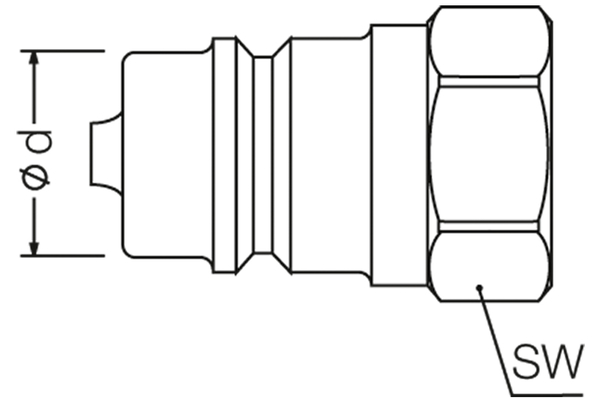

| Outer Ø plug [mm]: | 28,0 |
| Length plug [mm]: | 61,3 |
| SW [mm]: | 34 |
| SW1 [mm]: | 34 |
| l/min at ΔP=2 bar: | 100 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |

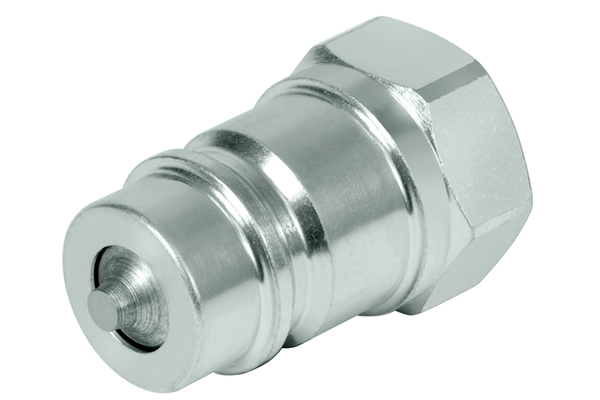

| Product title long: | Series ST-NV male coupling. Series ST-SV male coupling |
| Product title short: | male coupling |
Reserve technical changes.
