ST2-PV6-16CESS08-05M

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	CE Bulkhead-male thread heavy Seriess, DIN 3861
  Thread [GA]:	M16x1,5
  Pipe Ø R [mm]:	08S

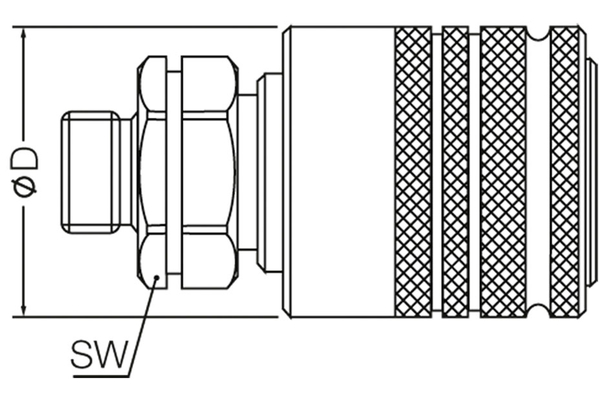

  Outer Ø sleeve [mm]:	31,0
  Length sleeve [mm]:	81.8
  SW [mm]:	22
  burst pressure coupled [bar]:	1300
  GL [mm]:	27
  burst pressure sleeve uncoupled [bar]:	1500
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Form of the sealing valve:	poppet
  Material:	steel gem. EN10277
  Material support ring:	PTFE

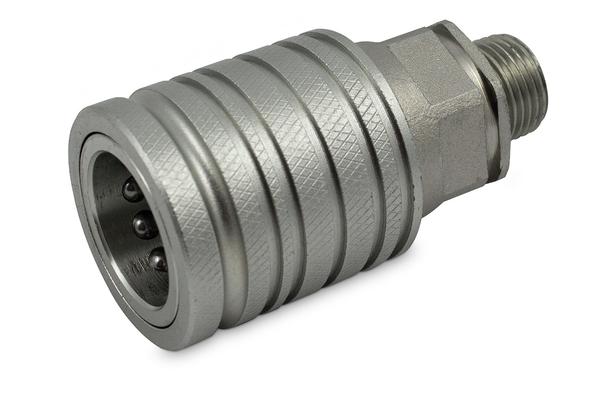

  Product title long:	Series ST2 female coupling.
  Product title short:	female coupling
