ST3-PV2-22CEL15-12M

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	300
  Thread + standard:	CE male thread light Series, DIN 3861
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L

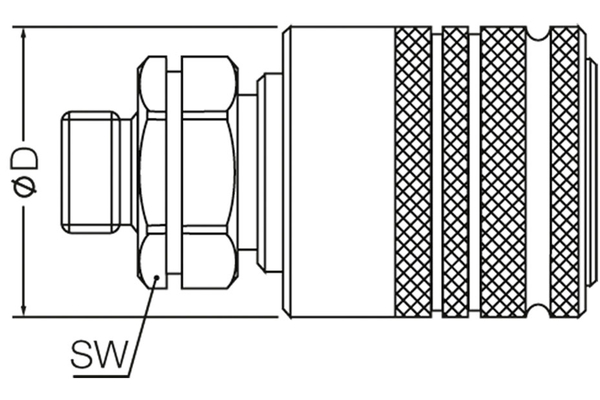

  Outer Ø sleeve [mm]:	38
  Length sleeve [mm]:	75,5
  SW [mm]:	27
  SW2 [mm]:	27
  burst pressure coupled [bar]:	1100
  burst pressure sleeve uncoupled [bar]:	1600
  l/min at ΔP=2 bar:	50
  Material:	steel gem. EN10277
  Material support ring:	PTFE
  Product title long:	Series ST3 female coupling.
  Product title short:	female coupling
