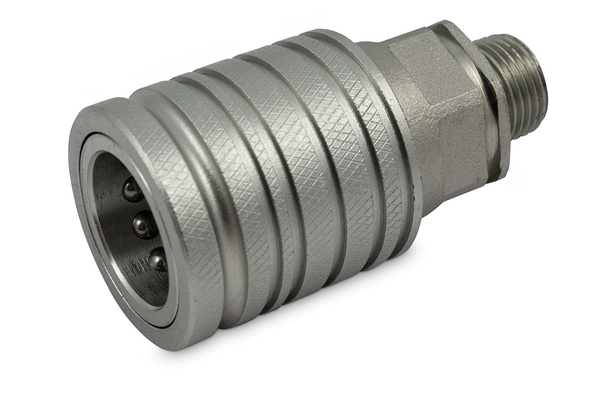

ST3-PV5-14CELS08-12M
Plug-in coupling series ST3 (female)

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	Metric bulkhead-thread ISO 8434-1-L
  Thread [GA]:	M14x1,5
  Pipe Ø R [mm]:	8L
  Outer Ø sleeve [mm]:	38,0
  Length sleeve [mm]:	85
  SW [mm]:	30
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	50
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Standard:	ISO 7241-1A
  Surface:	Zn-Fe (Chrom III)
  Temperature range [°C]:	-25°C to +100 °C
