ST6-PV2-36CEL28-20M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	225
  Thread + standard:	CE male thread light Series, DIN 3861
  Thread [GA]:	M36x2
  Pipe Ø R [mm]:	28L
  Outer Ø sleeve [mm]:	54,0
  Length sleeve [mm]:	94,5
  SW [mm]:	41
  Wrench size connection side sleeve:	41
  burst pressure coupled [bar]:	1000
  burst pressure sleeve uncoupled [bar]:	1100
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	189
  Material:	C-steel, nitrified
  Material support ring:	PTFE

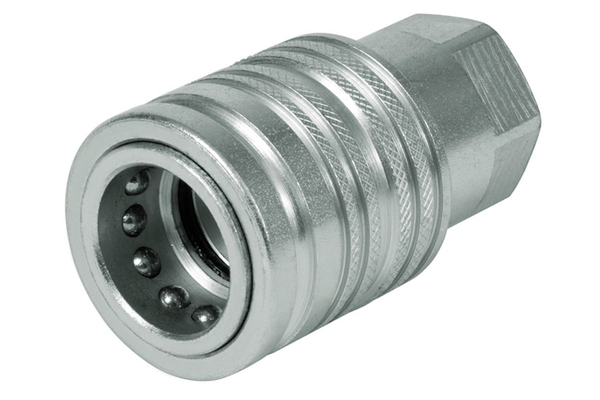

  Product title long:	Series ST6 female coupling.
  Product title short:	female coupling
