Art. No.: VC-FF-CEL18-12M
List number: 22900730

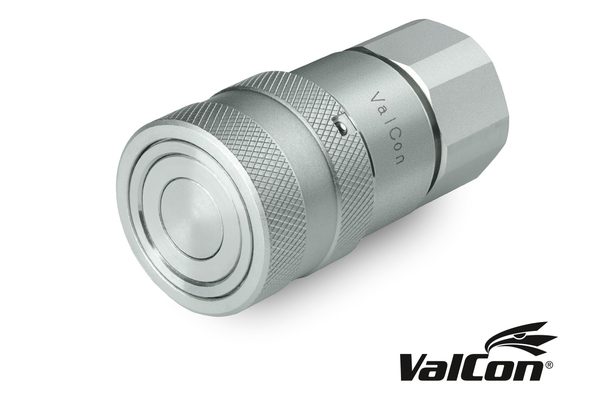

Quick-release reference coupling for the construction industry and other applications, where a flat face system is advantageous, compatibility according to ISO 16028
| Size: | 3 |
| DN: | 12 |
| Size: | 08 |
| Inch: | 1/2 |
| working pressure [bar]: | 300 |
| Thread + standard: | Metric male-thread ISO 8434-1-L |
| Thread [GA]: | M26x1,5 |
| Outer Ø sleeve [mm]: | 38,0 |
| Length sleeve [mm]: | 77,2 |
| SW1 [mm]: | 32 |
| l/min at ΔP=2 bar: | 60 |
| wrong type: | false |
Reserve technical changes.
