Art. No.: VC-FF-IG1-20M
List number: 22900650

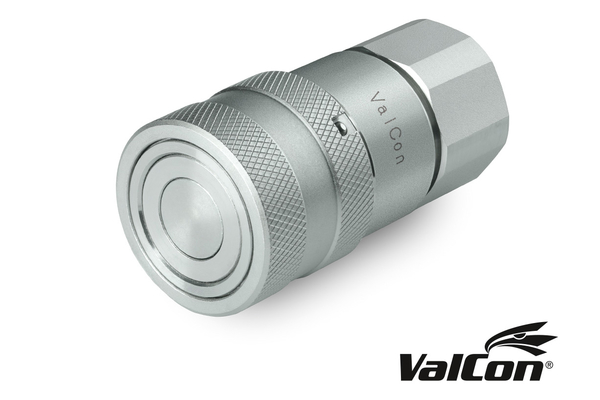

Quick-release reference coupling for the construction industry and other applications, where a flat face system is advantageous, compatibility according to ISO 16028
| Size: | 6 |
| DN: | 19 |
| Size: | 12 |
| Inch: | 3/4 |
| working pressure [bar]: | 250 |
| Thread + standard: | BSP internal thread DIN 3852 |
| Thread [GA]: | 1 |
| Outer Ø sleeve [mm]: | 48,0 |
| Length sleeve [mm]: | 99,9 |
| SW [mm]: | 41 |
| Wrench size connection side sleeve: | 41 |
| SW1 [mm]: | 41 |
| l/min at ΔP=2 bar: | 200 |
| Material: | C45 |
| Product title long: | Series VC-FF female coupling (ISO 16028). |
| Product title short: | female coupling |
Reserve technical changes.
